3411000 Removing and installing or replacing brake pads on both front disc brakes (Teves floating caliper)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Brake pad wear sensor: after removal it must be replaced (brake pad wear sensor loses its retention capability in the break pad).
Retaining spring: for vehicles older than 48 months it is recommended to replace the retaining spring!

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851.

Necessary preliminary work

Remove WHEELS .
Remove BRAKE PAD WEAR SENSOR

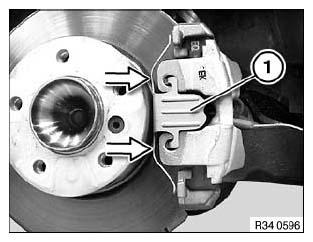

Lift out retaining spring (1).

Fig 1: Lifting Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

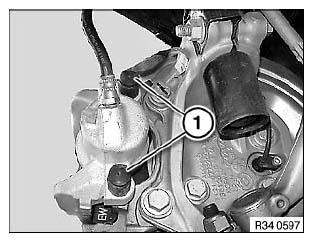

Remove plastic plugs (1).

Fig 2: Identifying Plastic Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten guide screws (1) and lift out brake caliper towards rear of vehicle.

Installation note:

Tightening torque 34 11 FRONT BRAKE .

Clean guide screws only; do not grease.

Check threads.

Replace all guide bolts which are not in perfect condition.

IMPORTANT: Tie brake caliper back and do not allow to hang from brake hose.

Fig 3: Removing Brake Caliper Towards Vehicle Rear

Courtesy of BMW OF NORTH AMERICA, INC.

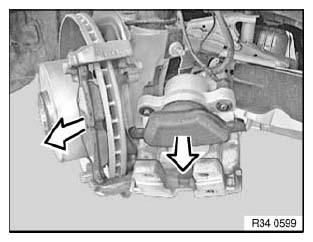

Remove outer brake pad.

Inner brake pad is located with its spring in the piston.

IMPORTANT: Mark any worn brake pads.
In the event of one-sided brake pad wear, do not change brake pads round.

Observe minimum thickness of brake pads. See FRONT BRAKE .

Clean brake pads.

Do not grease backs of brake pads sleeve.

Fig 4: Removing Outer Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The outer brake pads gradually need to be changed as well.

The previous version (A) with retaining spring (1) is replaced by brake pads of version (B) without retaining spring!

The use of pad sets of version (A) with retaining spring continues to be permissible!

Fig 5: Identifying Brake Pads With/Without Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

Position special tool 34 1 280 Gauge at three measuring points in area (1) and measure.
Compare measurement result and lowest value with setpoint value. See FRONT BRAKE .

Fig 6: Checking Minimum Brake Disc Thickness Using Special Tool (34 1 280)
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New brake pads may only be fitted if the brake disc thickness is greater than the minimum brake disc thickness. See FRONT BRAKE (MIN TH).

IMPORTANT: When pressing down piston, note brake fluid level in expansion tank.
Overflowing brake fluid will damage the paintwork.

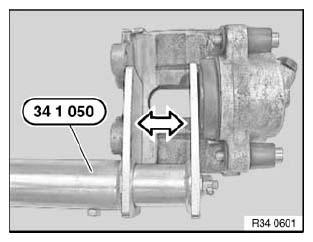

Turn piston back fully with special tool 34 1 050 .

Fig 7: Turning Piston Using Special Tool (34 1 050)

Courtesy of BMW OF NORTH AMERICA, INC.

Check dust boot (1) for damage and replace if necessary.

IMPORTANT: Dust boot must not come into contact with brake pad paste as this may cause the dust boot to swell.

Clean contact surface (2) of brake piston and apply a thin coating of brake pad paste.

Fig 8: Identifying Dust Boot And Brake Piston Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake pad tee heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 9: Identifying Brake Pad Tee Heads/Brake Caliper Housing Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake pads with brake cleaner and apply a thin coating of brake pad paste.

Fig 10: Identifying Brake Pad Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner and apply a thin coating of brake pad paste.

Fig 11: Identifying Brake Pad Guide Surface

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing work:

When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" marking.
Fully depress brake pedal several times so that brake pads contact brake discs.
Read and comply with notes on BRAKING IN NEW BRAKE DISCS/BRAKE PADS .
When replacing pads, reset CBS display in accordance with factory specification.
