51 13 425 Removing and installing/replacing cover on left or right rear light

Special tools required:

• 00 9 323

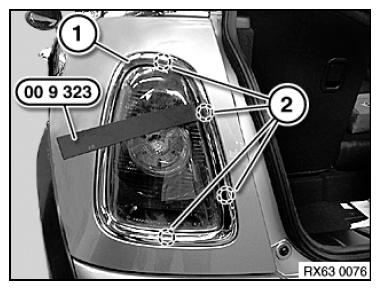

Unclip cover (1) with special tool 00 9 323 at points (2).

Fig 1: Unclipping Cover With Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

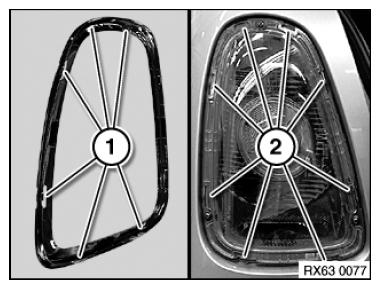

Retaining tabs (1) and latch mechanisms (2) must not be damaged.

Fig 2: Identifying Retaining Tabs And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
