51 13 375 Removing and installing/replacing trim on left or right rear roof pillar (C-pillar)
Special tools required:
Necessary preliminary tasks:
- Remove STRIP ON SIDE WINDOW

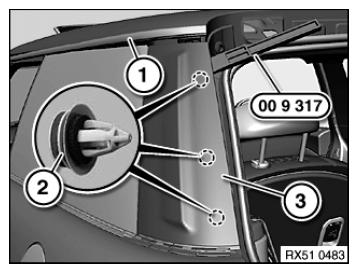

Pull roof trim strip (1) out of both last clips.
IMPORTANT:
Risk of damage!
Ensure temperature balance; trims which are too cold can be damaged when removed.
Position special tool 00 9 317 as closely as possible to clips (2) and lever out trim (3) with a short sharp jerk.
Ensure temperature balance; trims which are too cold can be damaged when removed.
Position special tool 00 9 317 as closely as possible to clips (2) and lever out trim (3) with a short sharp jerk.
Installation:
If necessary, replace faulty clips (2).
