51 13 301 Removing and installing/replacing left or right roof trim strip

Release door seal in area of roof trim strip.

Release screws (1).

Tightening torque 51 13 1AZ .

Unclip trim strip in direction of arrow from rear to front.

Slide trim strip towards front and release from front clip.

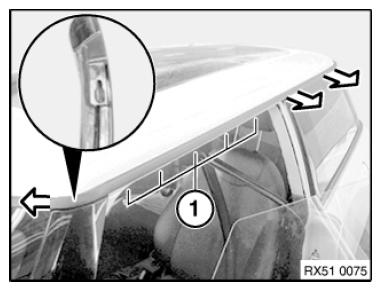

Fig 1: Locating Screws And Clips For Door Seal Trim Strip
G10995503Courtesy of BMW OF NORTH AMERICA, INC.
