51 71 412 Removing and installing/replacing rear spoiler

Special tools required:

Lever out seal plugs (1) and release nuts underneath.

Tightening torque 51 71 7AZ .

Fig 1: Identifying Seal Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rear spoiler (1) in upward direction from clips (2).

Fig 2: Identifying Rear Spoiler And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

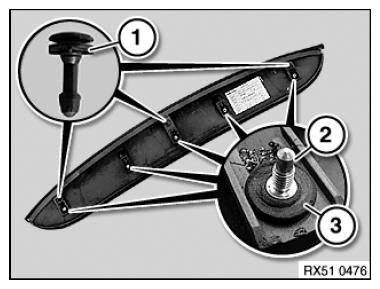

If necessary, replace faulty clips (1).

Studs (2) and seals (3) must not be damaged.

Fig 3: Identifying Clips, Studs, And Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Clean adhesive area (1) on rear spoiler (2) with spirit.

Air drying time at least 1 minute.

Stick cover (3) to adhesive area (2) and press down with special tool 51 0 300 (hand roller).

Fig 4: Identifying Rear Spoiler, Cover, And Adhesive Areas

Courtesy of BMW OF NORTH AMERICA, INC.
