51 71... Removing and installing/replacing the load bar (JCW GP)

Detach the covers (1) toward the inside.

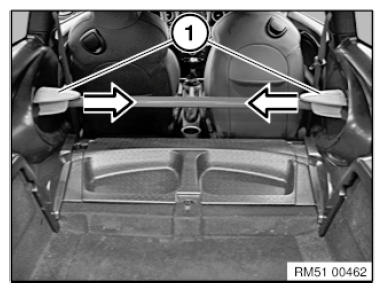

Fig 1: Detaching Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and lift load bar (2) out upwards.

Tightening torque 51 71 5AZ .

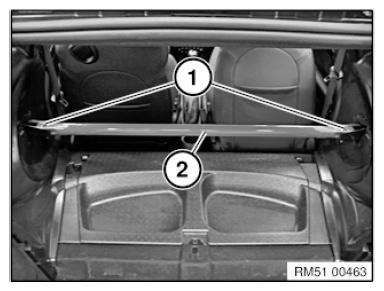

Fig 2: Identifying Load Bar And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
