52 13 030 Removing and installing/replacing backrest frame on front seat (manual/electric)

Necessary preliminary tasks:

Disengage Bowden cable (1) from release mechanism.

Fig 1: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1).

Installation:

Replace screws and insert with Loctite.

Tightening torque 52 13 03AZ .

Fig 2: Identifying Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

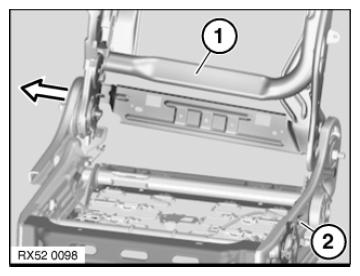

Remove backrest frame (1) from seat mechanism (2).

Fig 3: Removing Backrest Frame From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

If necessary, remove LUMBAR SUPPORT .
