84 11 519 Removing and installing or replacing eject box

Special tools required:

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect plug connection (1).

Unclip connector housing (2) and disconnect plug connection (3).

Expose connecting line up to the eject box.

Fig 1: Identifying Plug Housing And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary press button (1) and remove cover (2).

Undo screw (3) using a T10 Torx screwdriver.

Lift the cover (4) at the front and remove towards the rear.

Installation note:

Replace damaged cover.

Make sure cover is correctly positioned.

Fig 2: Removing Eject Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

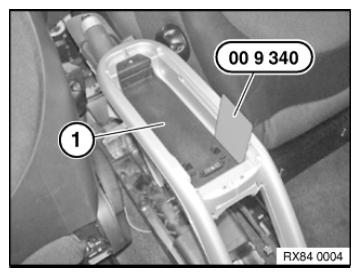

Disengage eject box (1) on both sides of center armrest using special tools 00 9 340 .

Remove eject box (1) and remove connecting line.

Fig 3: Disengaging Eject Box From Both Sides Of Center Armrest Using Special Tools (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.
