52 26 201 Removing and installing/replacing rear panel on rear seat back

Necessary preliminary tasks:

• Remove BACKREST COVER FOR REAR SEAT

Unclip trim (1) and feed out from lever (2).

Installation:

Retaining lugs must not be damaged.

If necessary, replace faulty trim (1).

Fig 1: Identifying Trim And Lever

Courtesy of BMW OF NORTH AMERICA, INC.

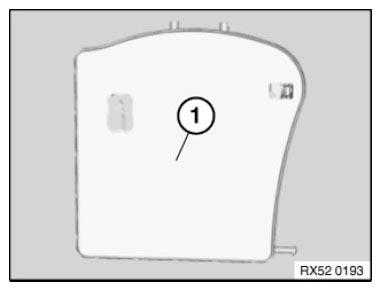

Remove rear panel (1) from backrest frame.

Fig 2: Identifying Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.
