61 31 133 Removing and installing/replacing AV connecting socket (from production date 08/2010)

Special tools required:

Necessary preliminary work:

Unclip console heater cover (1) using special tool 00 9 323 from retaining clips (2) and remove.

Fig 1: Removing Lower Center Console Heater Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on both sides.

Release screw (2).

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip center console cover (1) from brackets (2) and pull back slightly.

Fig 3: Identifying Center Console Cover And Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

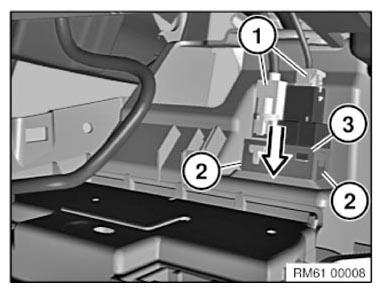

Unlock plug connections (1) on connecting socket (3) and disconnect.

Release latch mechanisms (2) and press connecting socket (3) out of cover in the direction of arrow.

Fig 4: Pressing Connecting Socket Out Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
