51 21 003 Replacing door detent (lock striker), front left or right

Release screws (1).

Remove door detent (2) with seal.

Installation:

Seal for door detent (2) must not be damaged.

ADJUST DOOR DETENT .

Tightening torque 51 21 2AZ .

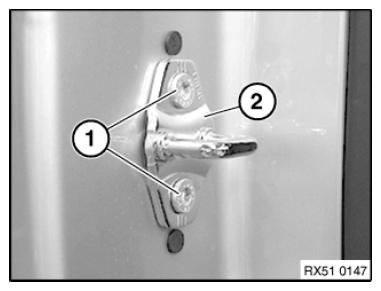

Fig 1: Identifying Door Detent And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
