51 11 050 Removing and installing/replacing support for front bumper panel
Special tools required:
Necessary preliminary tasks:
- Remove FRONT BUMPER PANEL
Diesel only:
- Remove front UNDERBODY PROTECTION
To perform this task, special tool 00 2 271 from special tool set 00 2 270 is needed.
NOTE:
The operation is described on the right side; proceed in the same way for the left side.
The position of the front panel is not altered by special tool (00 2 271). Therefore no adjustment work is required.
Remove foam part from support.

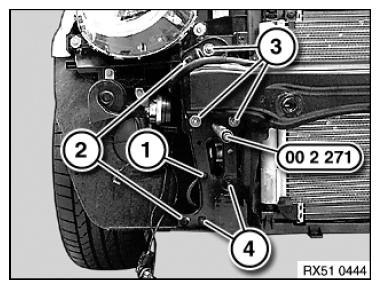

Insert special tool (00 2 271) and screw down.
If necessary, release cable holder (1).
Release screws (2 and 4).
Release nuts (3) and remove carrier.
Installation note:
Make sure foam part is correctly positioned on support.
Tightening torque 51 11 3AZ .
