51 23 212 Removing and installing/replacing cable for front engine compartment lid locks (in passenger compartment)

Necessary preliminary tasks:

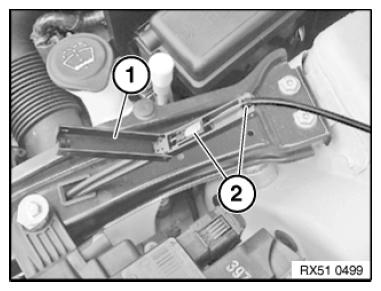

Disengage cable (1) at lever (2).

If necessary, disengage cable (1) at guide clips up to bulkhead.

Fig 1: Identifying Cable And Lever

Courtesy of BMW OF NORTH AMERICA, INC.

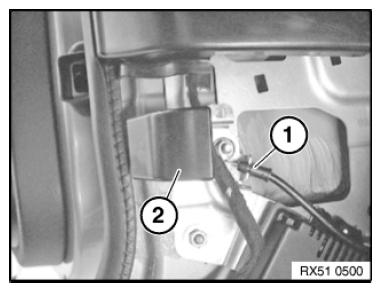

Lever out coupling (1) and open.

Disengage cable (2).

Fig 2: Identifying Coupling And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cable (1) out of front bulkhead (2).

Feed cable (1) with grommet (3) out of rear bulkhead.

Installation note:

Make sure grommet (3) is correctly seated on rear bulkhead.

Fig 3: Identifying Cable, Front Bulkhead And Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
