12 62 500 Replacing coolant temperature sensor (N16)

WARNING: Risk of scalding!
Only carry out repair work on the cooling system after the engine has cooled down!

Necessary preliminary tasks:

Installation location:

At cylinder head, left.

Coolant can escape during change of the coolant temperature sensor. Catch and dispose of coolant.

Release screw.

Pull intake silencer (1) upwards and disconnect from clean air pipe (2).

Pull off intake silencer (1) from air filter housing and remove.

Remove clean air pipe.

Fig 1: Removing Intake Silencer

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unlock and pull off connector and wiring.

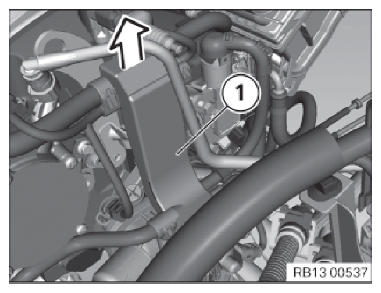

Carefully pull cable channel (1) upwards.

Fig 2: Pulling Cable Channel Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

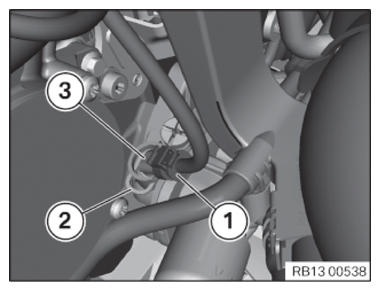

Unlock connector (1) and remove.

Pull off lock (2) and remove coolant temperature sensor (3).

Installation note:

Fig 3: Identifying Coolant Temperature Sensor, Lock And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Clear diagnostic fault entries from fault memory.
