Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove gear shift knob or handle. See SHIFT LEVER KNOB or SHIFT LEVER HANDLE .

Pull dust cover surround (1) upwards to release six securing clips. Remove gaiter. Dust cover surround has locating pins that ensure correct fit into the center console. See Fig 1.

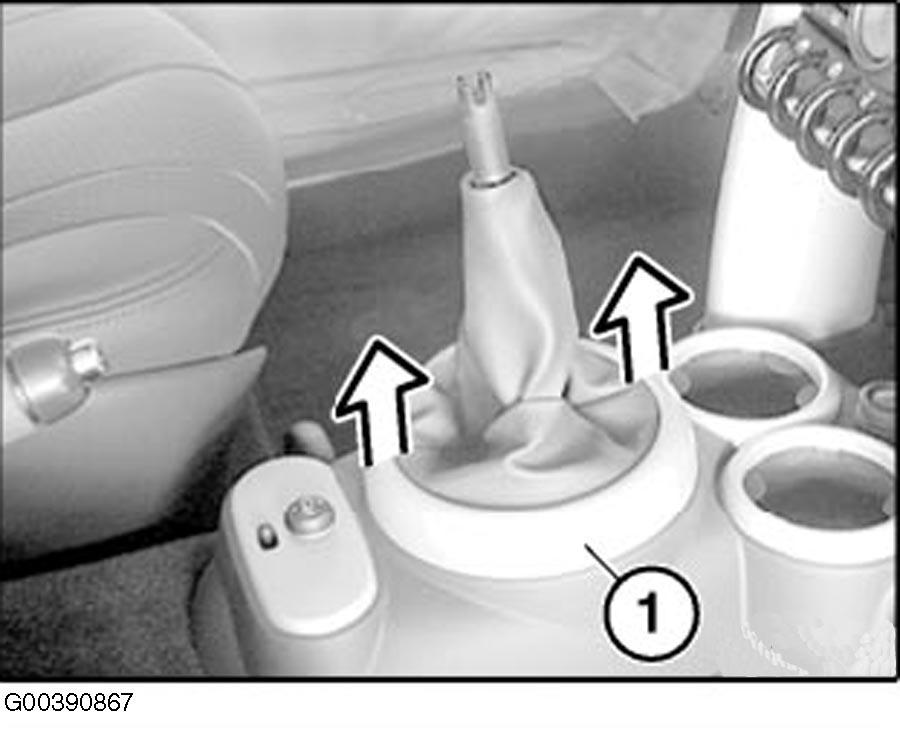

Fig 1: Pulling Dust Cover Surround Upward

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1) and remove dust cover (2) from dust cover surround (3). See Fig 2.

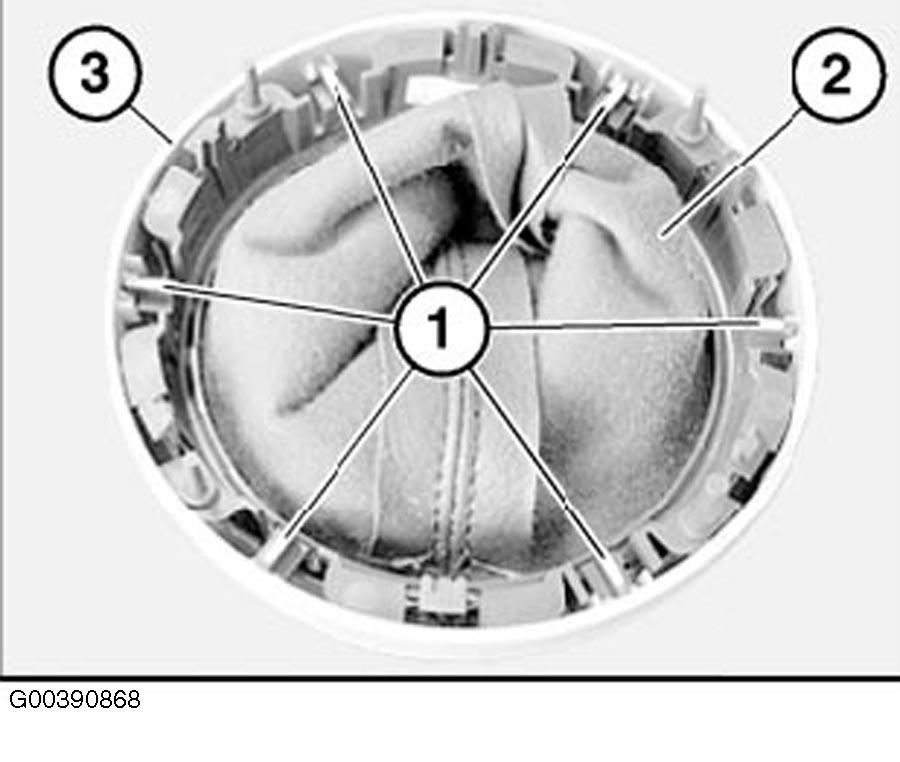

Fig 2: Removing Dust Cover

Courtesy of BMW OF NORTH AMERICA, INC.
