51 13 222 Removing and installing/replacing rear window trim strip

Unclip trim strip (1) in direction of arrow.

Installation note:

Align trim strip (1) centrally.

Fig 1: Unclipping Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining strips (1) from clips (2) towards the rear.

Installation note:

Replace faulty clips (2).

Fit trim strip with preassembled retaining strips (1) to tailgate.

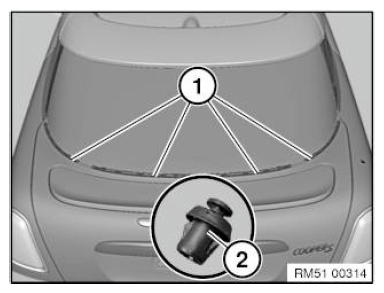

Fig 2: Identifying Retaining Strips And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
