51 43... Removing and installing/replacing trim panel for B-pillar on left or right

Special tools required:

Necessary preliminary tasks:

Using special tool 00 9 327 , unclip cover (1) from shaped part (3) at division (2).

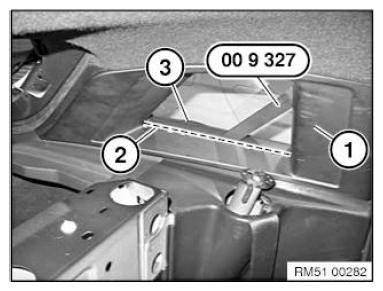

Fig 1: Unclipping Cover From Shaped Part At Division Using Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Release trim (1) at clamps (2).

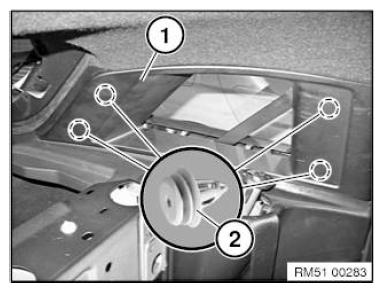

Fig 2: Identifying Trim And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off edge protection (1) in headlining area.

Detach headlining (3) at guides (4).

Lift out expanding rivet (2) and lower rear headlining (3).

Installation note:

Guides (4) must not be damaged.

If necessary, replace faulty expanding rivet (2).

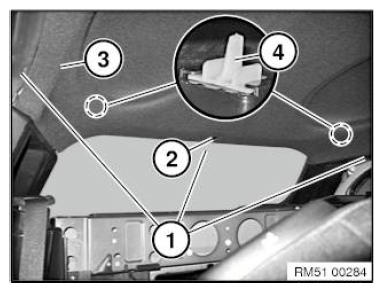

Fig 3: Identifying Edge Protection, Lower Rear Headlining, Expanding Rivet And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cover (1) towards the rear.

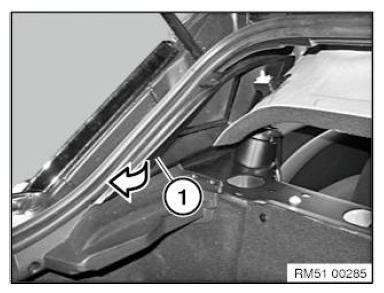

Fig 4: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Guides (1) at cover (3) must not be damaged.

If necessary, replace faulty clips (2).

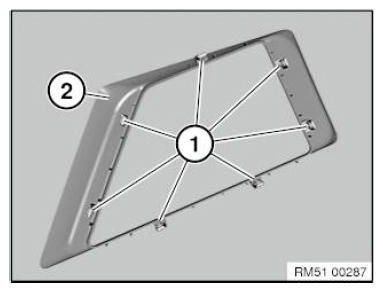

Fig 5: Identifying Guides, Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shaped part (2) removed for purposes of clarity.

If necessary, replace faulty clips (1) on shaped part (2).

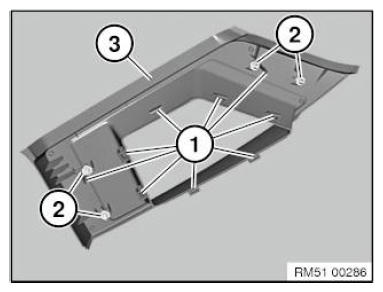

Fig 6: Identifying Clips On Shaped Part
