51 16 060 Removing and installing or replacing inside mirror

IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 ° C.
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).

IMPORTANT: To avoid windscreen breakage:
Screw inside mirror off mirror mount.
Inside mirror must not be pulled or pressed off towards front or rear.

Version with remote key for central locking system:

If necessary, disconnect negative lead from BATTERY .

Press on end caps (1) and at same time press them apart; this releases clip connection of both caps (1).

Fig 1: Releasing Clip Connection Of Both Caps

G04727641

Courtesy of BMW OF NORTH AMERICA, INC.

Twist inside mirror (1) at an angle towards front and right/top.

Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

Fig 2: Detaching Engagement Clip

G04749650

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

Fig 3: Identifying Clips And Retaining Hooks Of End Caps

G04749652

Courtesy of BMW OF NORTH AMERICA, INC.

Twist inside mirror (1) at an angle towards front and left/top.

Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

Fig 4: Swiveling Right End Cap Off Ball Neck

G04749651

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

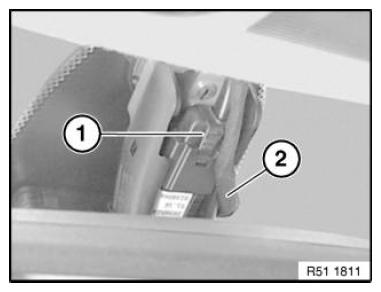

NOTE: Pay attention to cable routing (2) for rain sensor.

Fig 5: Identifying Rain Sensor Cable Routing And Plug Connection

G11032986

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not pull or press inside mirror off towards front or rear.

Twist mirror base approx. 45° to right until mirror base is released from mirror mount.

Fig 6: Twisting Mirror Base

G04749640

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Twist mirror foot by approx. 45° and fit to mirror base.
Turn mirror base until it engages on mirror mount.

Fig 7: Twisting Mirror Foot

G04749641

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace with version with remote key for central locking system:

If necessary, initialize all transmitters (ignition keys), refer to the vehicle owner's handbook.
