51 47... Removing and installing/replacing luggage compartment through-loading facility cover

Necessary preliminary tasks:

• Remove rear window STORAGE SHELF  at front
• Remove FRONT LUGGAGE COMPARTMENT FLOOR TRIM PANEL
• Remove UPPER PARTITION TRIM PANEL
• Remove LOWER PARTITION TRIM PANEL

Release trim ring (1) from clamps (2) in the areas marked and remove.

Installation note:

If necessary, replace faulty clamps (2).

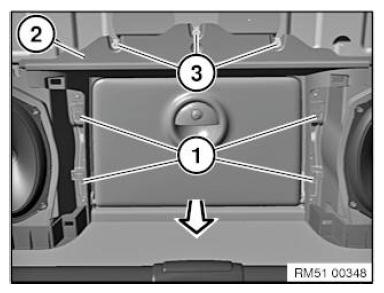

Release screws (1).

Release through-loading facility cover (2) from clips (3).

Pull out through-loading facility cover (2) in direction of arrow.

Installation note:

Guides (1) and clips (2) on through-loading facility cover (3) must not be damaged or missing.

Replacement:

Modify THROUGH-LOADING FACILITY FLAP .
