51 49... Removing and installing/replacing inside tailgate trim panel

Special tools required:

Necessary preliminary tasks:

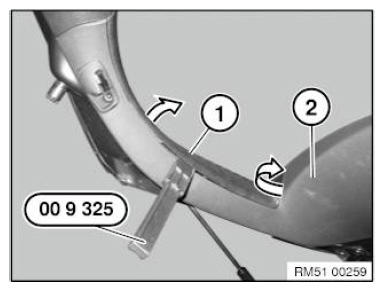

Unclip cover (1) using special tool 00 9 325 .

Feed out trim panel (1) from trim panel (2) and remove.

Fig 1: Removing Tailgate Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

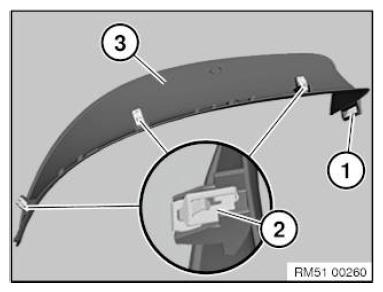

Guide (1) and clamps (2) on trim panel (3) must not be damaged.

Fig 2: Locating Guide And Clamps On Tailgate Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
