51 47 490 Removing and installing/replacing front assembly underbody protection (diesel only)
NOTE:

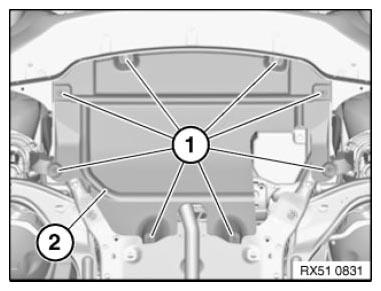

Picture created using the R56 COOPER D as the example. There may be differences in detail in the case of other models.
Release screws (1).
Pull forward underbody protection (2) under bumper trim and remove.
Installation note:
Center underbody protection and tighten down screws.
