4100... Frame Alignment Control Body Dimensions
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Dimensions in mm.
Measurement tolerances:
- ≤ 1000 mm ± 1.5 mm
- ≥ 1000 mm ± 2.5 mm
The control points shown serve to check the body and the straightening attachment.
The specified dimensions/measurements always refer to the centerpoint of the bore/screw.

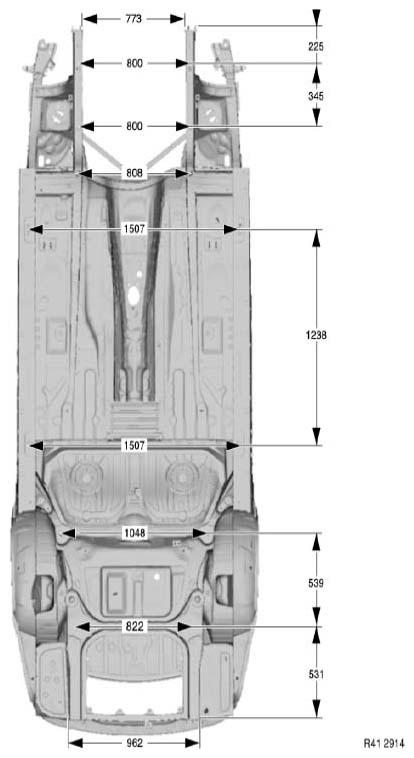

Under Body View 1

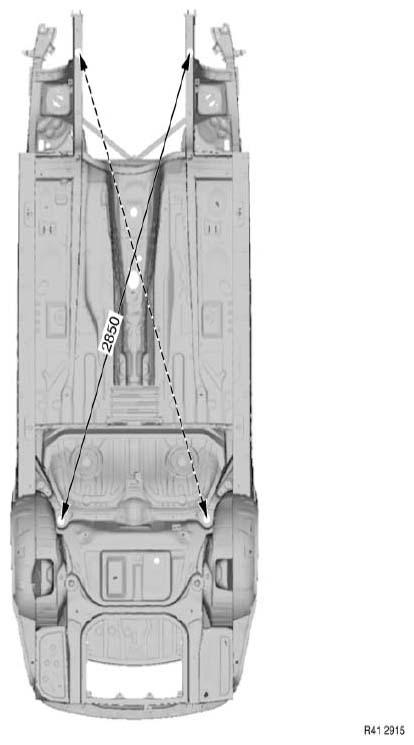

Underbody view 2

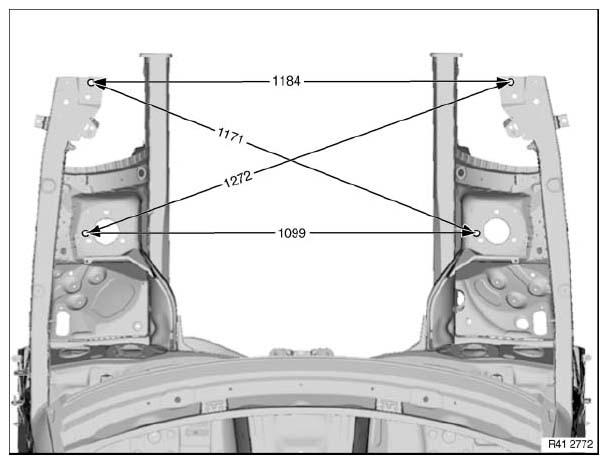

Top view, front end
Fig 3: Engine Compartment Under Body Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)
The specified dimensions refer to removed assemblies.

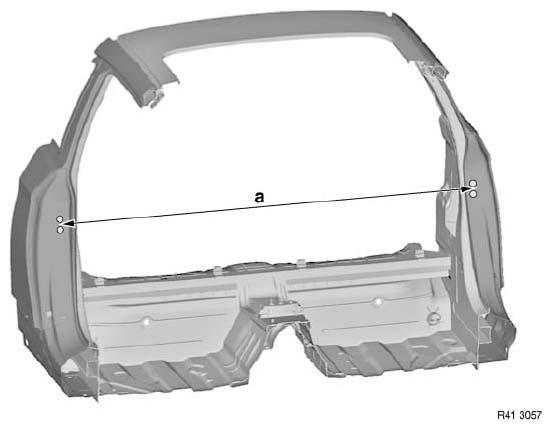

View, B-pillar (Saloon and Touring only)
Measurement a=1551 mm between screw-on points of door brakes.

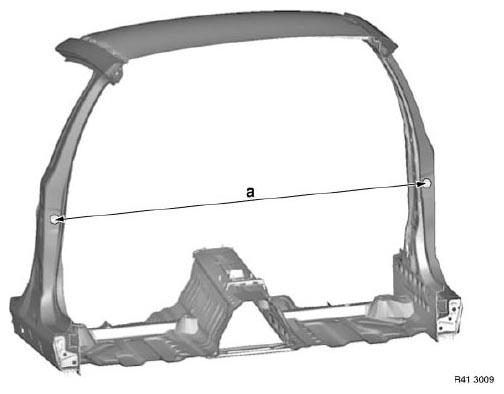

View, B-pillar (Coupe only)
Measurement a=1543 mm between screw-on points of lock strikers.
