63 99 315 Replacing light bulb(s) for left or right rear light

• Up to version 08/2010, remove rear light

Build date up to 08/2010

Turn socket housing (1-3) and pull out from rear light.

1. Socket housing for rear light/brake light
2. Socket housing for turn indicator
3. Socket housing for reversing light
   Fig 1: Identifying Rear Light Socket Housings

   Courtesy of BMW OF NORTH AMERICA, INC.

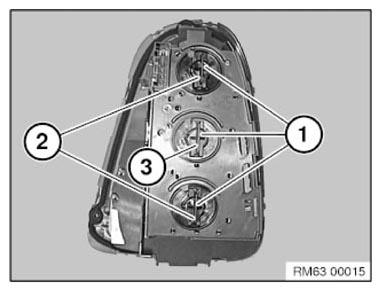

Build date from 08/2010

Turn socket housing (1-3) and pull out from rear light.

1. Socket housing for rear light
2. Socket housing for brake light
3. Socket housing for turn indicator
   Fig 2: Identifying Socket Housings

   Courtesy of BMW OF NORTH AMERICA, INC.

   Turn bulb (1) in direction of arrow and remove from socket housing (2).

   Installation note:

   Note BULB TYPE .

   Fig 3: Removing Bulb From Socket Housing

   Courtesy of BMW OF NORTH AMERICA, INC.
