65 75 080 Removing and installing/replacing interior movement detection module in left or right front door

Necessary preliminary tasks:

• Remove FRONT DOOR TRIM PANEL

Disconnect plug connection (1).

Release screws (2) and remove module for interior movement detector on front door (3).

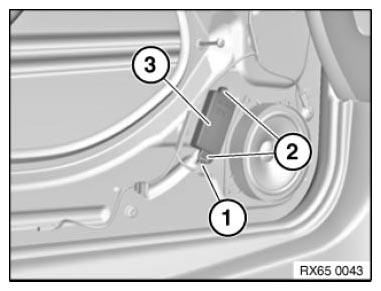

Fig 1: Identifying Module, Plug Connection, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
