41 31 000 Replacing Outer Roof Skin (Normal Roof)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Refer to repair instruction ROOF OUTER SKIN WITH SLIDE/TILT SUNROOF  for procedure and carry over schematically to the car.

STRIP DOWN VEHICLE .

Installing roof outer skin

Apply sealing compound in areas (1) analogously to Series.

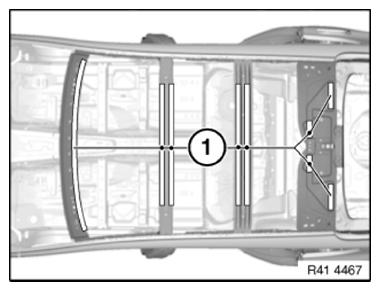

Fig 1: Identifying Sealing Compound Areas
G09878736Courtesy of BMW OF NORTH AMERICA, INC.
