41 61 000 Removing And Installing Engine Compartment Lid
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Support engine compartment lid in fully opened position with suitable apparatus.
Support engine compartment lid in fully opened position with suitable apparatus.
Necessary preliminary tasks:
Disengage GAS PRESSURE SPRING from engine compartment lid hinge.
IMPORTANT:
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Procedure only applicable to vehicles without active pedestrian protection, AFGS.
Procedure only applicable to vehicles without active pedestrian protection, AFGS.

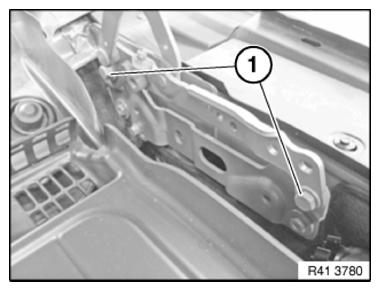

Release screws (1).
Tightening torque 41 61 2AZ .
Remove engine compartment lid.
Graphic similar.
Installation note:
Install engine compartment lid at screw locations to on hinge. This dispenses with the need for adjustment after installation.
If this is not possible, ADJUST ENGINE COMPARTMENT LID .
