51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 324

IMPORTANT: Observe PROCEDURE for using special tool 00 9 324 .

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

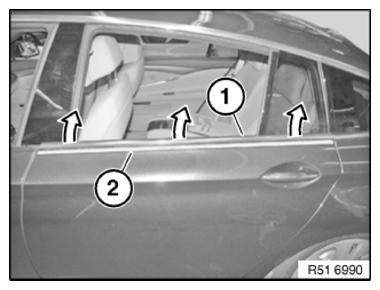

Tape off area below window cavity cover strip with fabric adhesive tape (2).

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

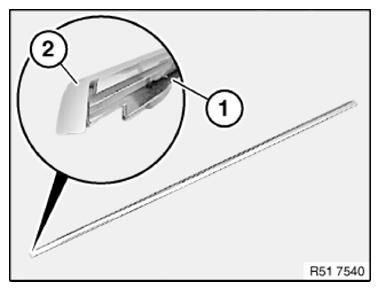

Seal (1) must be correctly fitted in cover strip (2).

Fig 2: Identifying Cover Strip And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
