26 20 000 Removing and installing front propeller shaft (325xi)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not move vehicle with engine power once propeller shaft has been removed.

Remove rear underbody protection from assemblies. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01)

Remove underbody protection at center. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01)

Unfasten screws.

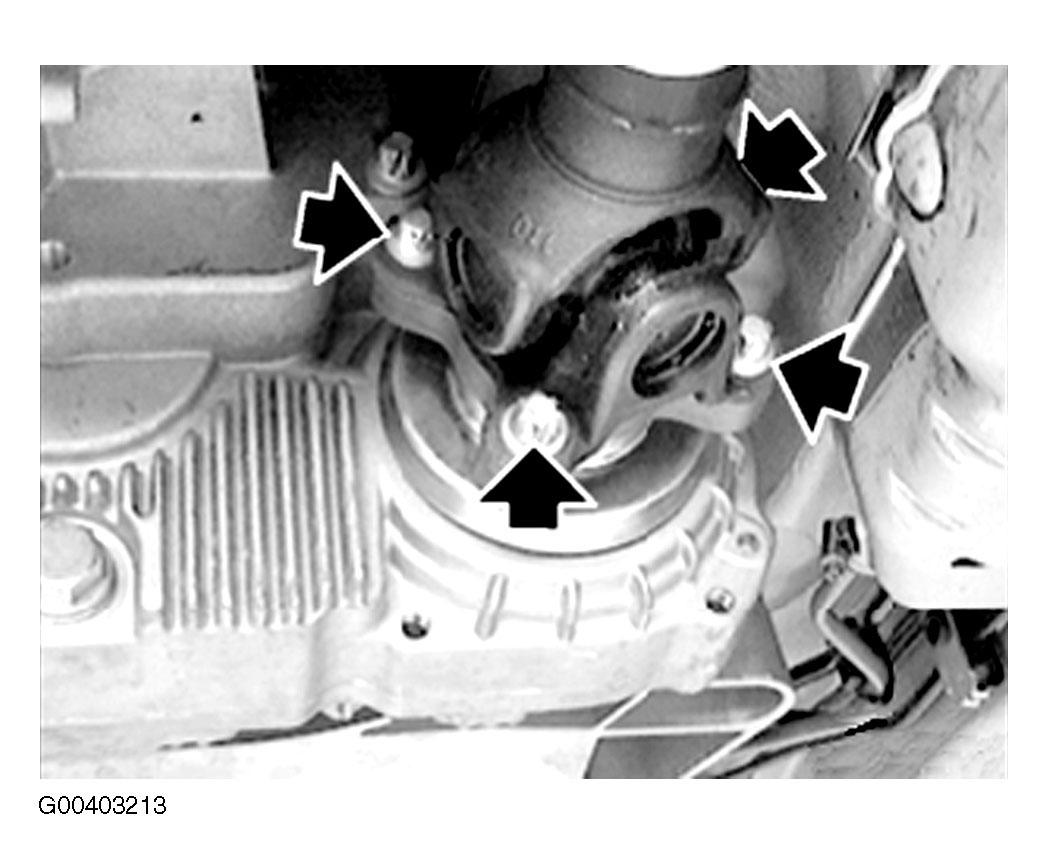

Fig 1: Identifying Propeller Shaft Bolts (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 26 11 4AZ in PROPELLER SHAFT - TIGHTENING TORQUES - 325I, CI & XI - E46 .

Unfasten screws.

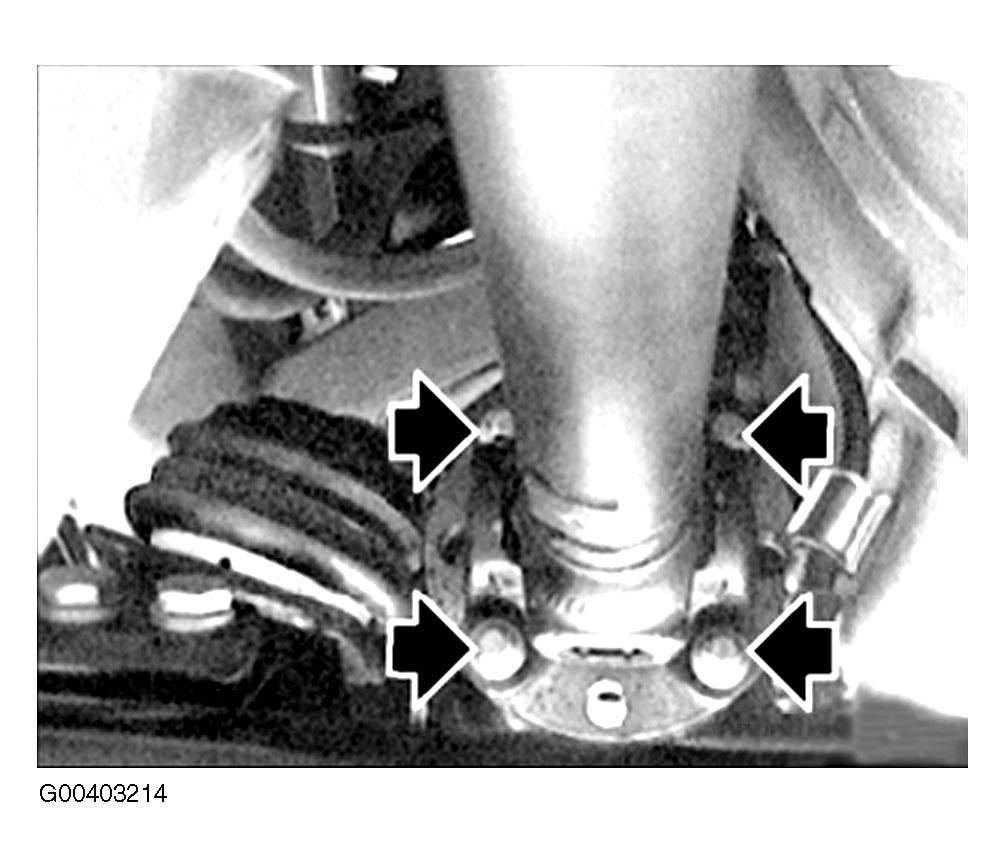

Fig 2: Identifying Propeller Shaft Bolts (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 26 11 4AZ in PROPELLER SHAFT - TIGHTENING TORQUES - 325I, CI & XI - E46 .

Remove propeller shaft.
