51 16 060 Removing and installing or replacing inside mirror
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).
Screw inside mirror off mirror mount.
Inside mirror must not be pulled or pressed off towards front or rear.
Version with remote key for central locking system:
If necessary, disconnect negative lead from BATTERY .
Press on end caps (1) and at same time press them apart; this releases clip connection of both caps (1).
Twist inside mirror (1) at an angle towards front and right/top.
Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.
Installation note:
Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.
Twist inside mirror (1) at an angle towards front and left/top.
Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.
Disconnect plug connection (1).

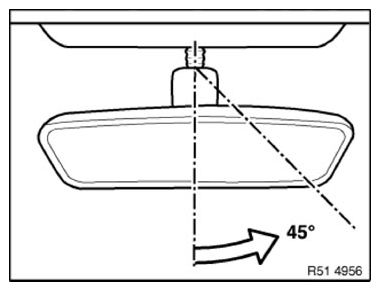

Twist mirror base approx. 45° to right until mirror base is released from mirror mount.
Installation note:
- Twist mirror foot by approx. 45° and fit to mirror base.
- Turn mirror base until it engages on mirror mount.
Only replace with version with remote key for central locking system:
If necessary, initialize all transmitters (ignition keys), refer to Vehicle Owner's Handbook.
