34 11 000 Removing and installing/replacing brake pads on both front disc brakes

Special tools required:

34 1 050
34 1 280

IMPORTANT:

Brake pad wear sensor: after removal it must be replaced (brake pad wear sensor loses its retention capability in the break pad).
Retaining pins and expanding spring: for vehicles older than 48 months it is recommended to replace the retaining spring!

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g).
Spread brake pad paste onto the marked surfaces using a brush!
Observe GUIDELINE FOR APPLYING BRAKE PAD PASTE ON BRAKE PADS AND BRAKE ANCHOR PLATE !

Necessary preliminary tasks:

REMOVE FRONT WHEELS .
Remove BRAKE PAD WEAR SENSOR .

Pull the brake pad wear sensor (1) toward the front out of the brake bad (left side only).

Release guide bolt (3).

If necessary, grip at hexagon head (2).

Feed brake hose out of holder (4).

Tilt brake caliper upwards.

Installation note:

Replace guide bolt.

Tightening torque 34 11 3AZ .

Fig 1: Identifying Brake Pad Wear Sensor And Brake Hose Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove brake pads (1) in direction of arrow from brake anchor plate.

IMPORTANT: Mark any worn brake pads.
In the event of one-sided brake pad wear, do not change brake pads round.

Observe MINIMUM THICKNESS OF BRAKE PADS .

Clean brake pads.

Do not apply grease to brake lining backplate.

Fig 2: Removing Brake Pads From Brake Anchor Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measuring result and lowest value with SETPOINT VALUE .

Fig 3: Checking Minimum Brake Disc Thickness
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New brake pads may only be fitted if the brake disc thickness is greater than the MINIMUM BRAKE DISC THICKNESS (MIN TH).

Press brake piston fully back with special tool 34 1 050.

IMPORTANT: When pressing piston back, note brake fluid level in expansion tank.
Overflowing brake fluid will damage the paintwork.

Fig 4: Pressing Brake Piston Fully Back With Special Tool (34 1 050)

Courtesy of BMW OF NORTH AMERICA, INC.

Check dust boot for damage and renew if necessary.

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

IMPORTANT: Dust boot must not come into contact with brake pad paste as this may cause the dust boot to swell.

Fig 5: Identifying Contact Surface Of Brake Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 6: Identifying Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surface (1) for the brake pads on the brake caliper mounting bracket. Clean guide surface (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 7: Identifying Guide Surface For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coating of brake pad paste to both sides of T-head of brake pad in area (1).

Fig 8: Identifying Brake Pad Paste Application Area On Both Sides Of T-Head

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Brake pad with bulge (1) is intended for accommodating the brake pad wear sensor and must be fitted on the piston side.

Fig 9: Identifying Brake Pad With Bulge

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing repair work:

Fully depress brake pedal several times so that brake pads contact brake discs.
When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" mark.
Read and comply with notes on BREAKING-IN NEW BRAKE DISCS/BRAKE PADS .
If necessary, when replacing pads, reset CBS display in accordance with factory specification.

Replacement:

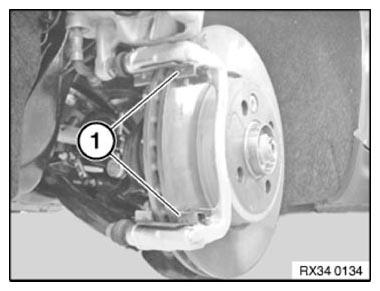

Remove pad retaining springs (1).

Installation note:

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner and apply a thin coating of brake pad paste.

Fig 10: Identifying Pad Retaining Springs

Courtesy of BMW OF NORTH AMERICA, INC.
