51 37 265 Removing and installing/replacing window cavity cover strip for door window, rear left or right

Special tools required:

Necessary preliminary tasks:

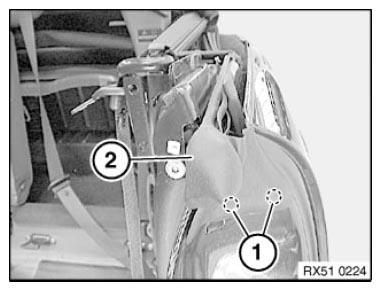

Lever out catches (1) on inner window cavity cover strip (2).

Fig 1: Identifying Catches On Inner Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

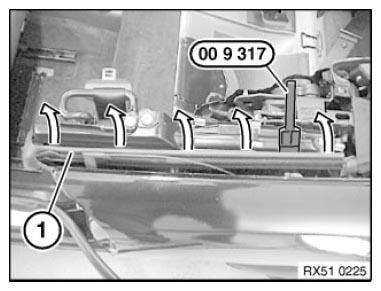

Carefully lever out window cavity cover strip (1) with special tool 00 9 317 towards top.

Fig 2: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

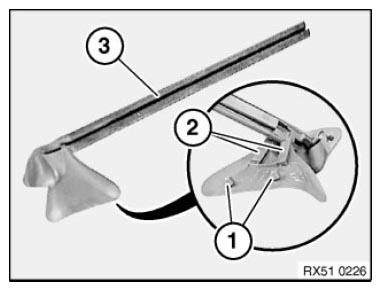

Catches (1) and guides (2) on window cavity cover strip (3) must not be damaged.

Fig 3: Identifying Catches And Guides On Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

R57:

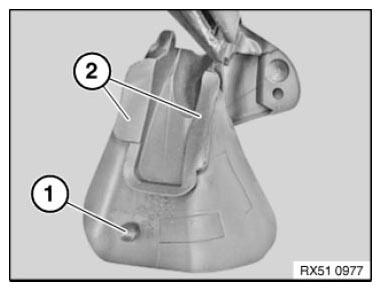

New profiling of catch (1) and guides (2) on window cavity cover strip (3).

Fig 4: Identifying New Profiling Of Catch And Guides On Window Cavity Cover Strip (R57)

Courtesy of BMW OF NORTH AMERICA, INC.
