51 16 160 Removing and installing/replacing center console trim

Special tools required:

• 00 9 323

Necessary preliminary tasks:

• Remove LOWER TRIM FROM INSTRUMENT PANEL
• Remove SIDE CENTER CONSOLE PANEL
• Remove COVER FOR INSTRUMENTS

Unclip lower center console heater cover (1) from retaining clips (2) using special tool 00 9 323 and remove.

Release screws (1) on both sides.

Release screw (2).

Only on cars with telephone version:

Release screw (1).

Remove front center console trim (2).

Only on cars with telephone version:

Disconnect plug connection (1).

Unclip center console trim (1) from holders (2) and pull back slightly.

Disconnect plug connection (1).

Only on vehicles with diesel engine:

Disconnect plug connections (2).

Remove center console trim.

Replacement:

• Remove HEATER/AIR CONDITIONING CONTROL PANEL
• Remove AV CONNECTION SOCKET

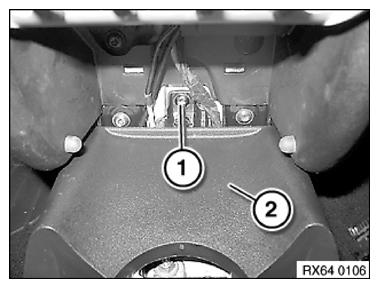

  Fig 6: Identifying Plug Connections

  Courtesy of BMW OF NORTH AMERICA, INC.
