41 62 014 Adjusting tailgate

IMPORTANT: Do not damage adjoining body components.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

Read contents of BODY, GENERAL .

The GAP DIMENSIONS serve as the basis for adjusting procedure.

The tailgate must be provided with all attachment parts for correct adjustment.

When the tailgate is closed, the lock striker must not touch or scrape against the tailgate lock.

Loosen striker and remove, If necessary.

Adjusting tailgate laterally and in longitudinal direction:

Slacken screws (1) and adjust tailgate.

Tightening torque 41 62 1AZ .

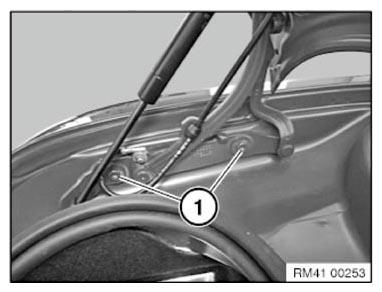

Fig 1: Identifying Tailgate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Adjustment of tailgate height:

Slacken screws (1) and adjust tailgate.

Tightening torque 41 62 2AZ .

Adjust TAILGATE CATCH .

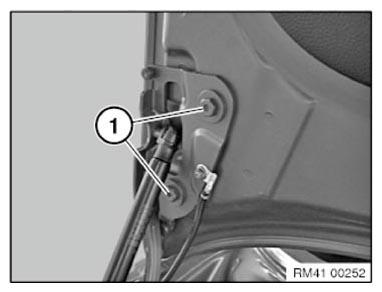

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note:

Tighten all screws and nuts to specified torque.
Touch up unpainted surfaces in the appropriate color.
