51 47... Removing and installing/replacing storage compartment

Necessary preliminary tasks:

Lever out rubber cap (1) and release screw underneath.

Remove center barrier (2).

Installation note:

Latch mechanisms of rubber cap (1) must not be damaged or missing.

Fig 1: Identifying Center Barrier And Rubber Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release barrier (1) on left/right to the top from clamps (2).

Installation note:

Replace faulty clamps (2).

Fig 2: Identifying Barrier And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out carpet (1) to the top and release screws underneath at marked points.

Remove storage compartment support (2).

Installation note:

Guides (arrow) serve for positioning the carpet when inserting it.

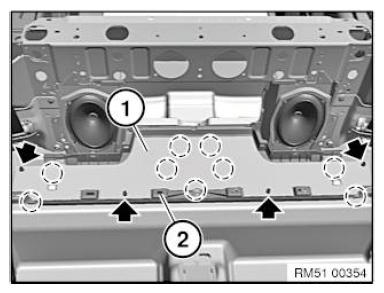

Fig 3: Removing Storage Compartment Support

Courtesy of BMW OF NORTH AMERICA, INC.
