63 17 088 Removing and installing/replacing left position light (without headlight cleaning system)

Necessary preliminary tasks:

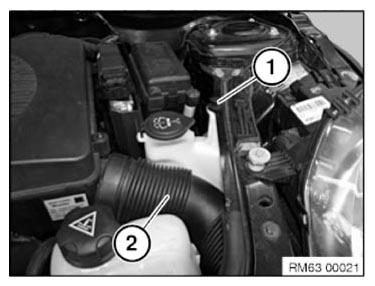

Release expanding rivet (1) and air hose (2).

Fig 1: Identifying Expanding Rivet And Air Hose

Courtesy of BMW OF NORTH AMERICA, INC.

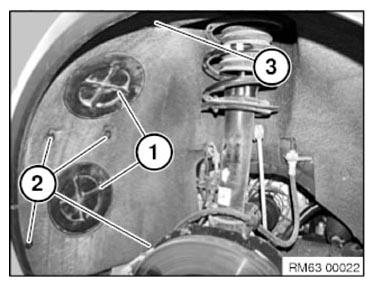

Remove lid (1).

Release expanding rivet (2).

Release screw (3).

Fig 2: Identifying Expanding Rivet, Lid, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

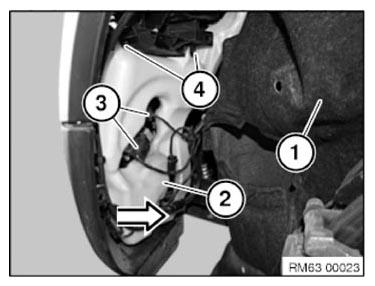

Fold wheel arch panel (1) towards rear and fasten.

Disconnect connector (3).

Release screws (4).

Lever out washer fluid reservoir (2) and turn in direction of arrow into wheel arch.

Fig 3: Disconnecting Washer Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

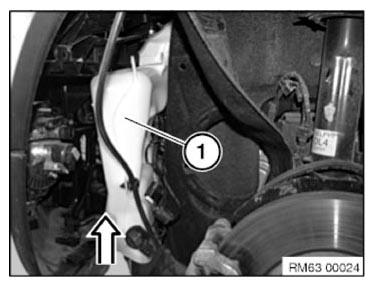

Press washer fluid reservoir (1) to the top.

Fig 4: Pressing Washer Fluid Reservoir Upward

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Similar to graphic.

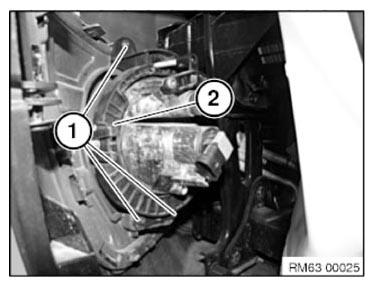

Release screws (1).

Feed out position light (2) to one side.

Replacement:

If necessary, remove BULBS .

Fig 5: Identifying Position Light And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
