63 25 000 Removing and installing/replacing auxiliary brake light

Necessary preliminary tasks:

Release screws (1).

Pull out auxiliary brake light (2) slightly in direction of arrow.

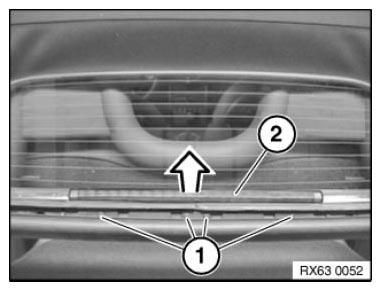

Fig 1: Pulling Out Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove auxiliary brake light (2) towards top.

Installation:

Make sure plug connection (1) and sealing strips (3) are correctly seated.

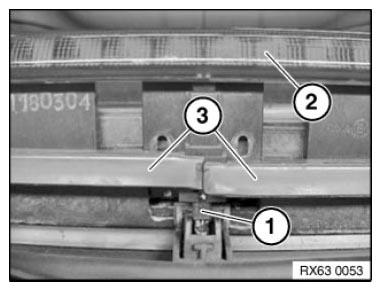

Fig 2: Identifying Auxiliary Brake Light, Plug Connection, And Sealing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal (1) is correctly seated in auxiliary brake light (2).

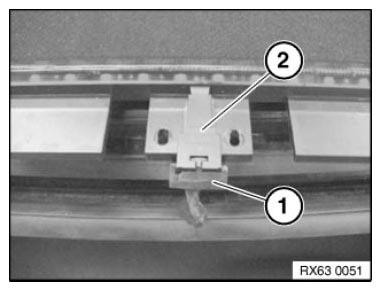

Fig 3: Identifying Auxiliary Brake Light And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
