65 77 016 Removing and installing airbag control unit

WARNING: Comply with AIRBAG SAFETY REGULATIONS .
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Release screws (1) on parking brake console holder (2).

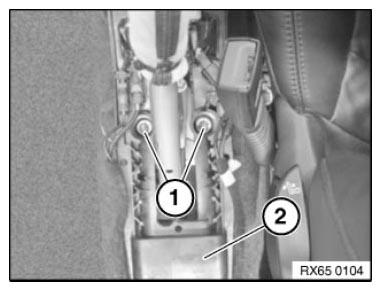

Fig 1: Identifying Screws And Parking Brake Console Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Raise handbrake console holder (1).

Feed out cover for airbag control unit (2).

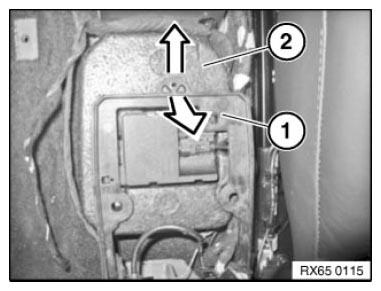

Fig 2: Removing Cover For Airbag Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 65 77 1AZ .

Release nut (2) and disconnect grounding cable underneath.

Tightening torque 65 77 1AZ .

Carefully feed out airbag control unit (3).

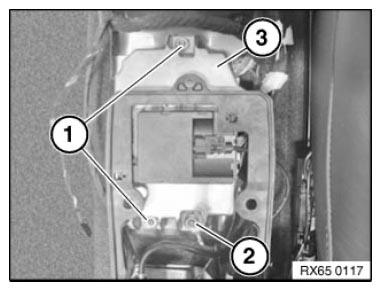

Fig 3: Identifying Airbag Control Unit And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove airbag control unit (2).

Installation note:

Make sure cables are correctly laid.
