Test results for regular entry into sleep mode

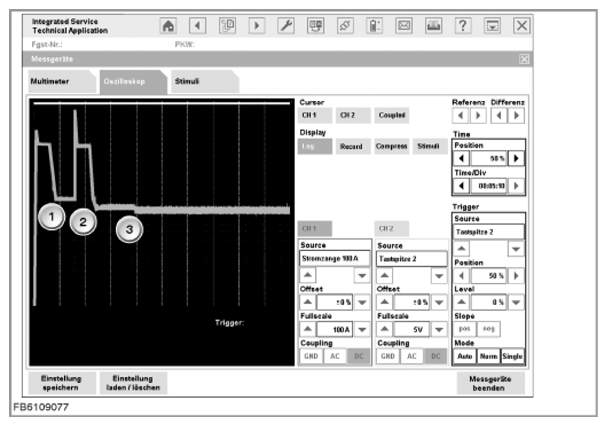

The illustration below shows the current progression when a vehicle enters sleep mode.
Oscilloscope settings:
| CH1: | Current clamp 100 A, offset 0 %, full scale 100 A, coupling DC |
| Display: | Log, Record |
| Cursor: | CH1 |
Entering sleep mode:
BEHAVIOR ENTERING SLEEP MODE DESCRIPTION
| No. | Time | Event | Possible identifying features |
|---|---|---|---|
| 1 | 0 - 3 min | Sleep mode entered | START STOP button illumination goes out Illumination of child lock switch (green LED) on driver's door switch cluster goes out |
| 3 - 8 min | Vehicle sleeping | ||
| 2 | 8 - 9 min | Body general module (KBM) or footwell module (FRM) wakes the vehicle up: Load cutoff | Reading light goes out Glove compartment light goes out |
| 17 - 30 min or 17 - 60 min | Vehicle sleeping | ||
| 3 | 30 or 60 min | Terminal 30g switched off |
