67 11 555 Removing and installing/replacing actuator drive for fuel filler flap

Necessary preliminary tasks:

Turn sleeve (1) with a suitable tool approx. 45° in direction of arrow and pull out of receptacle (2).

Fig 1: Turning Sleeve And Removing Receptacle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide sleeve (1) over fuel filler flap locking pin (2).

Make sure sleeve (1) is correctly engaged in cover housing (3).

Fig 2: Sliding Sleeve Over Fuel Filler Flap Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

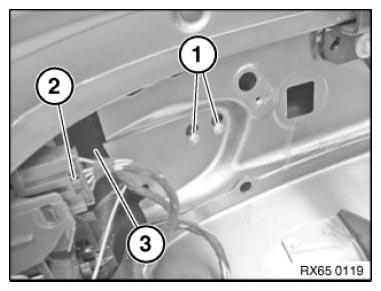

Release screws (1).

Unlock rear light plug connection (2) and disconnect.

Carefully feed out actuator drive through opening (3).

Fig 3: Identifying Screws, Plug Connection, And Opening

Courtesy of BMW OF NORTH AMERICA, INC.

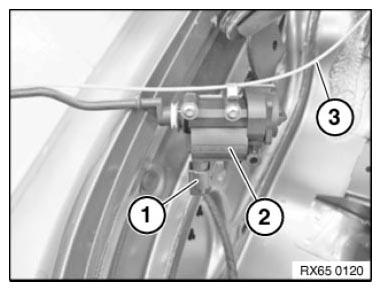

Unfasten plug connection (1) and disconnect.

Remove actuator drive (2).

Installation:

Make sure emergency release (3) is correctly seated on actuator drive (2).

Fig 4: Identifying Actuator Drive, Plug Connection, And Emergency Release

Courtesy of BMW OF NORTH AMERICA, INC.
