51 24 391 Replacing the rubber buffer for the rear lid support

Release screws (1) and remove holder (2).

Tightening torque 51 24 15AZ .

Installation note:

Adjust both stop buffers (3), work is described in ADJUSTING REAR LID LOCK .

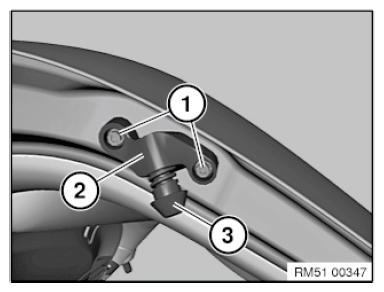

Fig 1: Checking And Securing Stop Pad

Courtesy of BMW OF NORTH AMERICA, INC.
