51 44 150 Replacing trim for front roofliner

Necessary preliminary tasks:

• Open soft top
• Remove both TRIMS FOR FRONT ROOF PILLAR
• Remove roof operating facility

Remove both counter supports (3) from the sun visors, by lifting up the visors (1) and loosening the screws (2).

Remove counter supports (3).

Fig 1: Identifying Trims And Counter Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release trim panel (1) from clips (2) and clamps (3).

Installation note:

Renew faulty clips (2) and clamps (3).

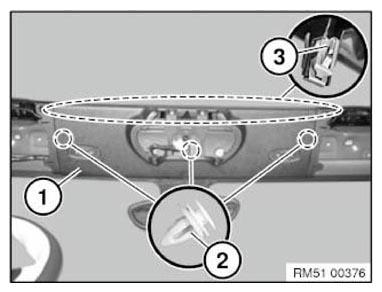

Fig 2: Identifying Trim Panel, Clips And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
