51 48 001 Removing and installing/replacing insulation lining on engine hood/bonnet
NOTE:
Work shown on R58 Cooper by way of example, deviations in detail are possible in other models.

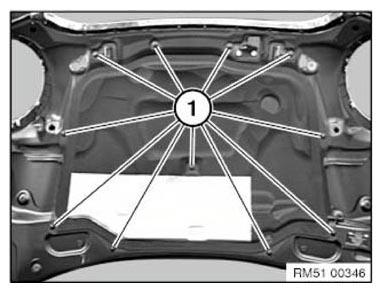

Remove threaded blind rivet (1) from the noise insulation.
Remove noise insulation.
Installation note:
If necessary, replace faulty threaded blind rivet (1).
