51 12... Removing and installing/replacing frame for rear fog lights left or right

Necessary preliminary tasks:

• Remove REAR FOG LIGHT
• Remove rear bumper trim. See REMOVING REAR BUMPER PANEL (UNTIL PRODUCTION DATE 08/2010)  or REMOVING REAR BUMPER PANEL (FROM PRODUCTION DATE 08/2010) .

Loosen latch mechanisms (1) and remove frame.

Installation note:

Latch mechanisms (1) must not be damaged.

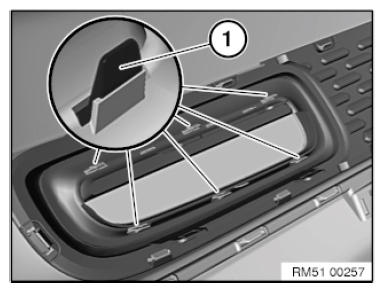

Fig 1: Identifying Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
