51 16... Removing and installing/replacing damper for glovebox

Necessary preliminary tasks:

• Remove INSTRUMENT PANEL LOWER SECTION

Release screws (1).

Remove damper (2).

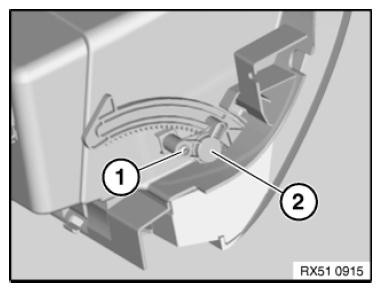

Fig 1: Identifying Damper And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
