51 11... Removing and installing/replacing cover for headlight washer unit on left
IMPORTANT:
Risk of damage!
Pulling the cover out too fast or with too much force may cause the holders to break.
Pulling the cover out too fast or with too much force may cause the holders to break.

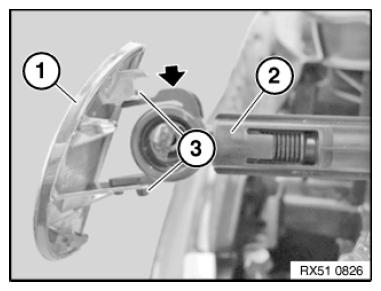

Slowly pull the washer jet (2) out of the cover (1) until the washer jet (2) can be gripped with pliers, grab the washer jet (2) at the bridge and pull it out.
Push the upper latch mechanism (3) down.
Release the cover (1) from the latch mechanisms (3) and remove.
Allow the washer jet (2) to slide back slowly.
Installation note:
Latch mechanisms (3) or holders on the cover (1) must not be damaged.
