61 31 011 Removing and installing/replacing coil spring cassette (up to 07/2008)

Necessary preliminary tasks:

Release screws (1).

NOTE: Mark installation position of inner ring of clock spring to steering column switch cluster.

For replacement, transfer identification (2) to new part.

Fig 1: Removing Steering Column Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Expand latch mechanisms (1) and remove coil spring cassette (2) from steering column switch cluster.

Fig 2: Identifying Latch Mechanisms, Coil Spring Cassette And Steering Column Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

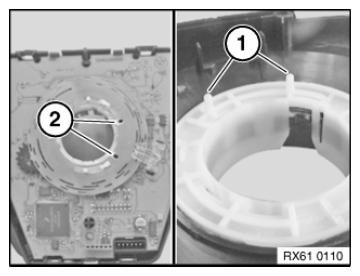

Guide pins (1) of clock springs must engage correctly in fixture (2) of steering column switch cluster.

Fig 3: Identifying Guide Pins

Courtesy of BMW OF NORTH AMERICA, INC.
