SI number

02 02 94 (807)

Consisting of:

1 = 0492861 Adapter cable

NOTE: (V adapter cable (D 2.5/ELA), 2-pin, oval zero-encoded). From 07/2013 again available separately.

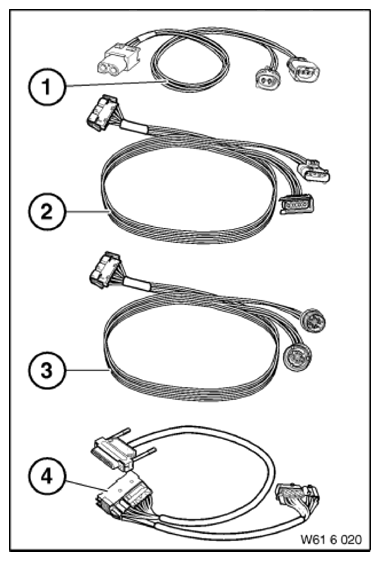

Fig 1: Identifying Adapter Cable (616020)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0492862 Adapter cable

NOTE: (V adapter cable (D 2.5/ELA), 4-pin, single row zero-encoded). From 07/2013 again available separately.

3 = 0492863 Adapter cable

NOTE: (V adapter cable (D 2.5/ELA), 4-pin, single row zero-encoded). From 07/2013 again available separately.

4 = 0492864 Adapter cable

NOTE: (V adapter cable (D 2.5/ELA), 7-pin, round, black). From 07/2013 also no longer available as part of a set - discontinued.

5 = 0492865 Adapter cable

NOTE: (V adapter cable (D 2.5/ELA), 24-pin, hybrid (Elo), black). From 07/2013 also no longer available as part of a set - discontinued.

6 = 0492866 Adapter cable

NOTE: (V adapter cable (D 2.5/ELA), 21-pin, hybrid (Elo), black). From 07/2013 also no longer available as part of a set - discontinued.

9 = 0492867 Operating instructions
