63 10... Adjust the fog lights (with electronic headlight adjustment device MAHA Lite 3)

Comply with TEST PREREQUISITES FOR HEADLIGHT ADJUSTMENT .

Refer to the manufacturer's operating instructions for the headlight adjustment device.

Switch on the headlight adjustment device by pressing any button.

Press F2  button. The shown display screen appears.

Perform the following settings:

1. The passenger car must be selected.
2. Enter the setting dimension for the headlight with buttons F1/F2: - 2, 0 %
3. The right/left-hand traffic must be selected according to the country.
4. Select the fog light type with the F3  button:
   • EC:  for halogen fog lights
   • EC LED:  for LED fog lights

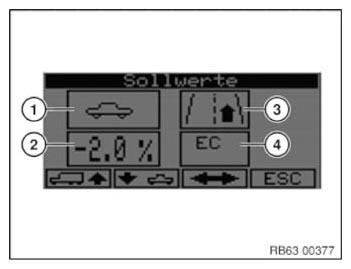

Fig 1: Display - Fog Light Adjustment Menu Screen
Courtesy of BMW OF NORTH AMERICA, INC.

The adjusted values are adopted for future measurements.

Press briefly  the button for the applicable side of the vehicle (1) until symbol (2) appears.

The following symbols appear in the display:

• K. (4): Adjustment is optimal.
• K. (3): Adjustment is within the legal tolerance range. ADJUST FOG LIGHT  until O. K. (4) is displayed.
• Arrows (5): Adjustment is incorrect. ADJUST FOG LIGHT  using arrows (5) until O. K. (4) is displayed.

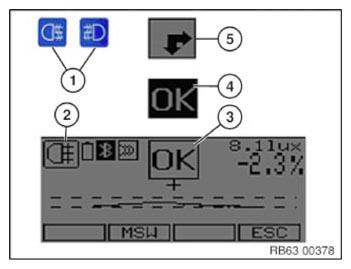

  Fig 2: Display - Fog Light Adjustment Screen

  Courtesy of BMW OF NORTH AMERICA, INC.
