61 35 147 Removing and installing/replacing Convertible top module

Necessary preliminary tasks:

• Remove LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL

Unlock plug connections (1) and disconnect.

Unscrew nuts (2).

Remove Convertible top module (3).

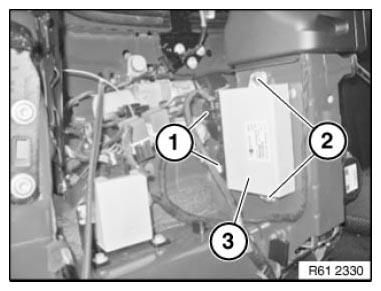

Fig 1: Identifying Convertible Top Module, Plug Connections, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
