65 12 230 Removing and installing DAB tuner

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
NOTE: Follow instructions for handling fibre optic cables.

Necessary preliminary tasks:

Unscrew nuts (1).

Unlock plug connections (2) and disconnect.

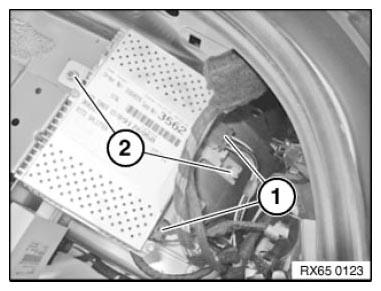

Fig 1: Identifying Nuts And Plug Connections
G06918127Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expanding rivet (1).

Remove DAB tuner (2) incl. bracket.

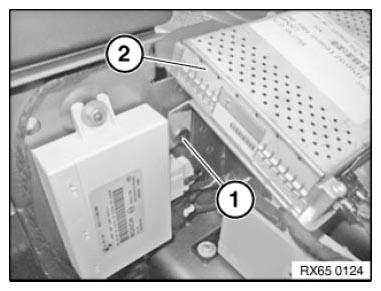

Fig 2: Identifying Rivet And DAB Tuner
G06918128Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove DAB tuner (2) from bracket.

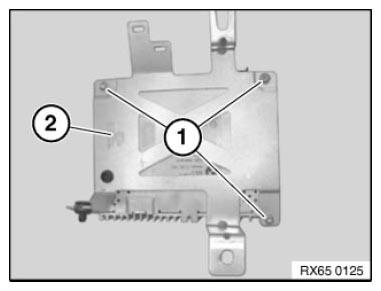

Fig 3: Identifying Screws And DAB Tuner
G06918129Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
